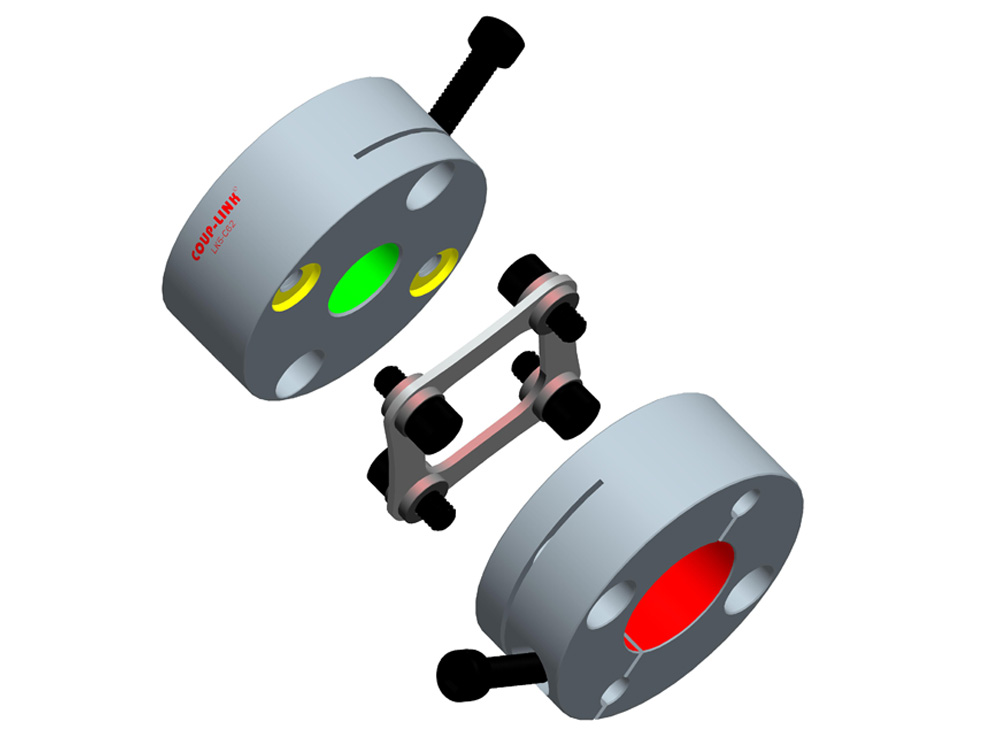

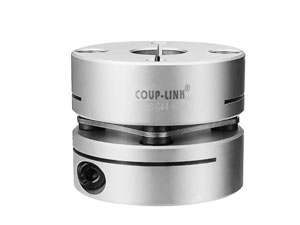

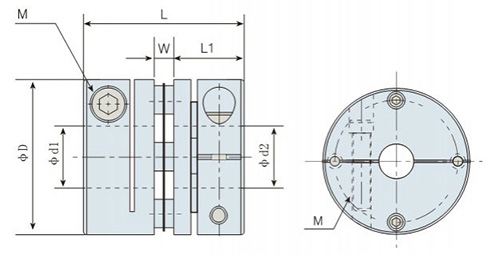

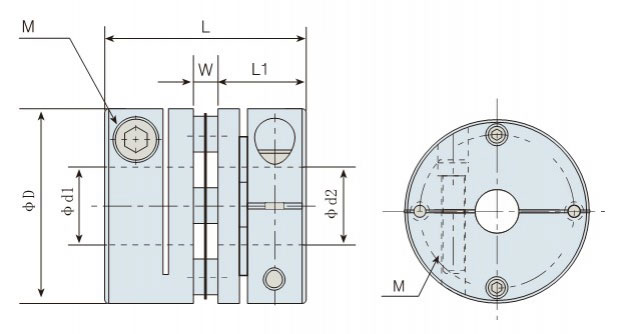

品番 | φd1φd2 最大軸穴径 | φD | L | W | L1 | M | ねじ締めつけトルク ( N.M ) |
LK18-C26 | 10 | 26 | 25.5 | 2.8 | 11.35 | M3 | 1.2 |
LK18-C34 | 14 | 34 | 32.6 | 3.6 | 14.5 | M4 | 2.5 |
LK18-C39 | 16 | 39 | 34.5 | 4.5 | 15.0 | M4 | 2.5 |
LK18-C44 | 19 | 44 | 34.8 | 4.8 | 15.0 | M4 | 2.5 |
LK18-C56 | 24 | 56 | 45.5 | 5.5 | 20.0 | M5 | 5 |
LK18-C68 | 35 | 68 | 54.0 | 6.0 | 24.0 | M6 | 8 |
LK18-C82 | 40 | 82 | 68.0 | 8.0 | 30.0 | M8 | 20 |
LK18-C94 | 40 | 94 | 68.5 | 8.5 | 30.0 | M10 | 40 |
LK18-C104 | 45 | 104 | 70 | 10.0 | 30.0 | M10 | 40 |
品番 | 常用トルク ( N.m ) | 最大トルク ( N.m ) | 最大回転数 周波数 ( rpm ) | 慣性モーメント ( Kg.m2 ) | 静的ねじりばね定数 ( N.m / rad ) | 許容偏角 ( °) | ミスアライメント許容値 ( mm ) | 質量 ( g ) |
LK18-C26 | 1.4 | 2.8 | 10000 | 2.29×10-6 | 690 | 1 | ±0.2 | 27.1 |
LK18-C34 | 2.8 | 5.6 | 10000 | 8.22×10-6 | 1650 | 1 | ±0.2 | 56.9 |
LK18-C39 | 5.8 | 11.6 | 10000 | 1.53×10-5 | 2500 | 1 | ±0.3 | 80.4 |
LK18-C44 | 8.7 | 17.4 | 10000 | 2.46×10-5 | 2900 | 1 | ±0.3 | 101.8 |
LK18-C56 | 25 | 50 | 10000 | 8.60×10-5 | 8400 | 1 | ±0.5 | 219.4 |
LK18-C68 | 55 | 110 | 10000 | 2.02×10-4 | 11500 | 1 | ±0.5 | 350.2 |
LK18-C82 | 80 | 160 | 10000 | 5.65×10-4 | 14550 | 1 | ±0.6 | 672.8 |
LK18-C94 | 185 | 370 | 10000 | 1.04×10-3 | 16900 | 1 | ±0.7 | 943.3 |
LK18-C104 | 255 | 510 | 10000 | 1.61×10-3 | 25100 | 1 | ±0.8 | 1188.7 |
